Proposed Roadway Views
-

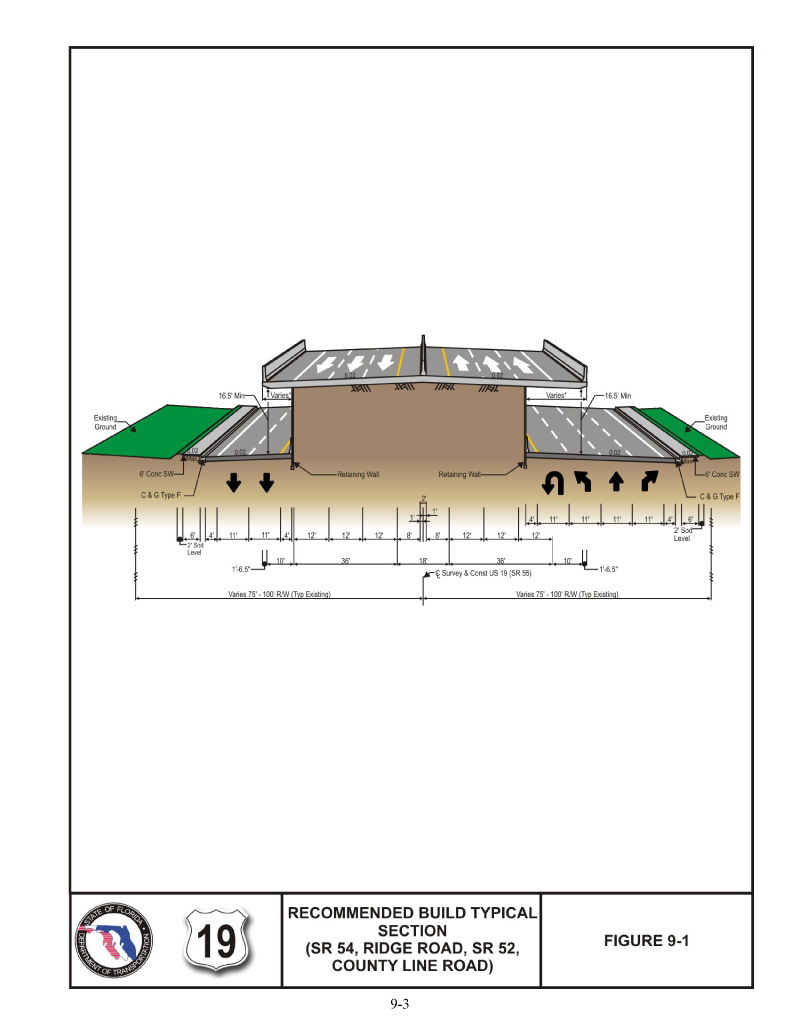

- RECOMMENDED BUILD TYPICAL SECTION (SR 54, RIDGE ROAD, SR 52, COUNTY LINE ROAD)
-

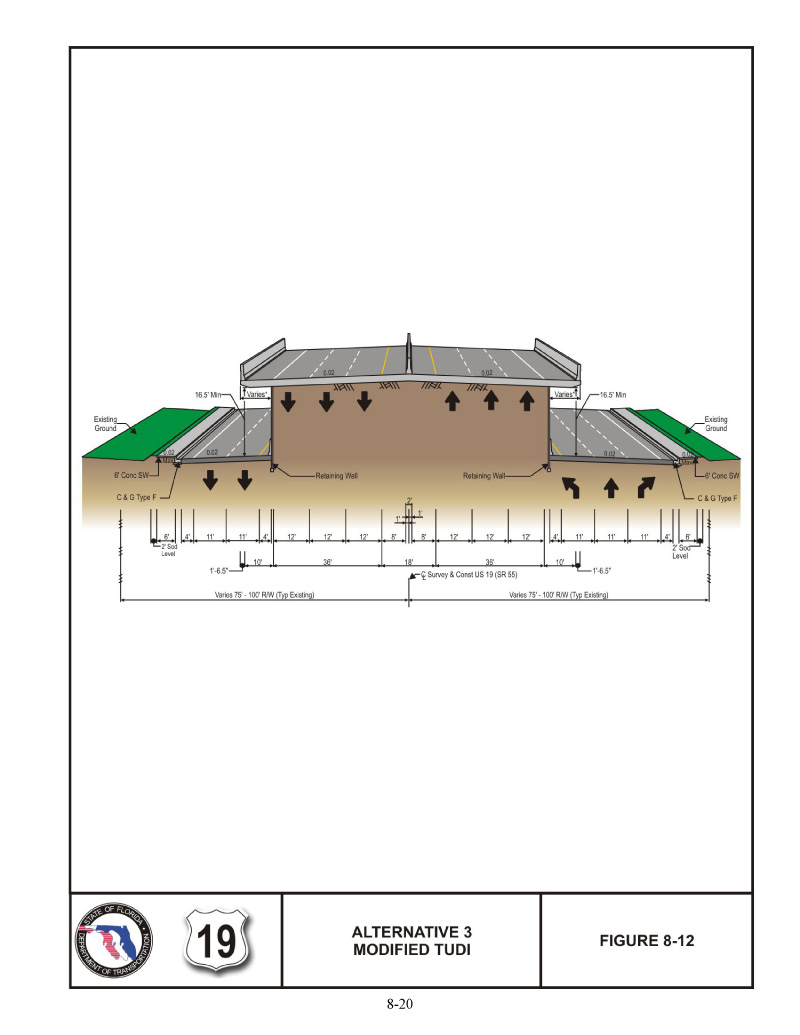

- ALTERNATIVE 3 MODIFIED TUDI
-

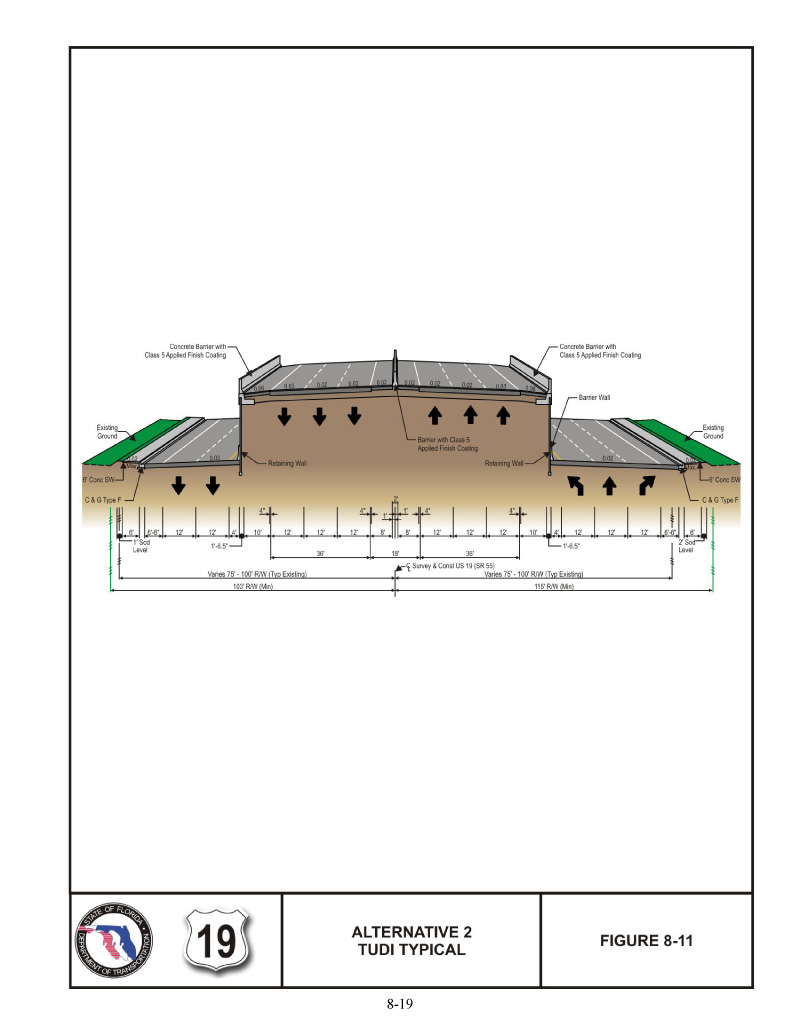

- ALTERNATIVE 2 TUDI TYPICAL
-

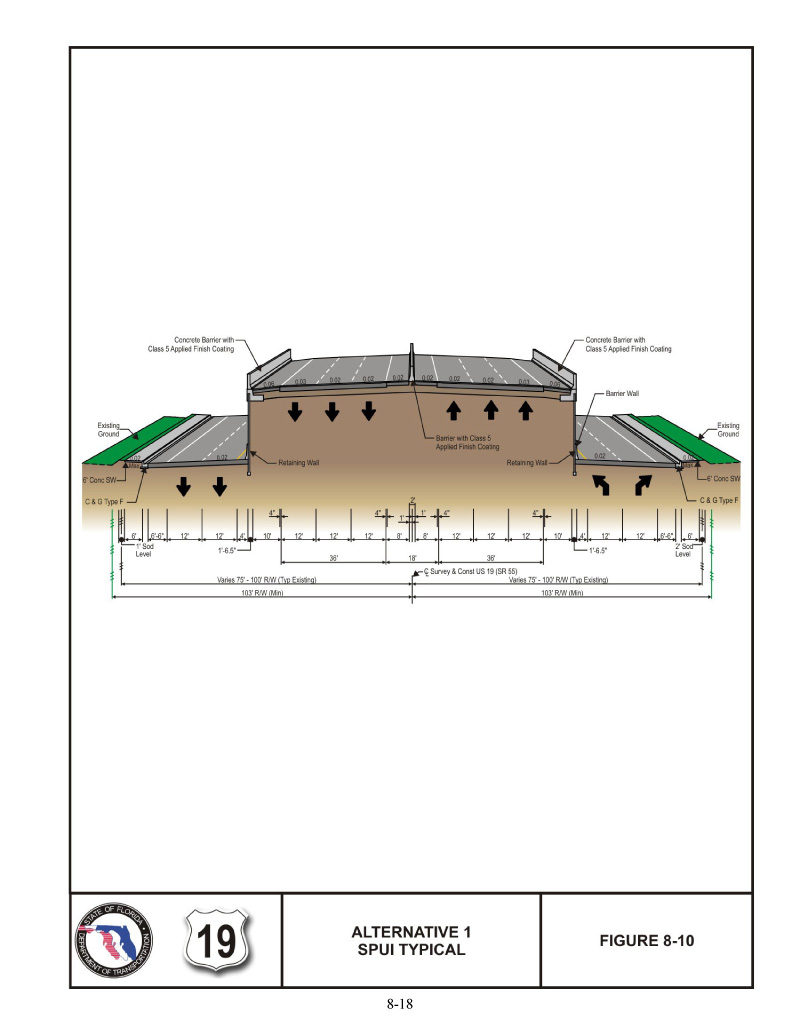

- ALTERNATIVE 1 SPUI TYPICAL
-

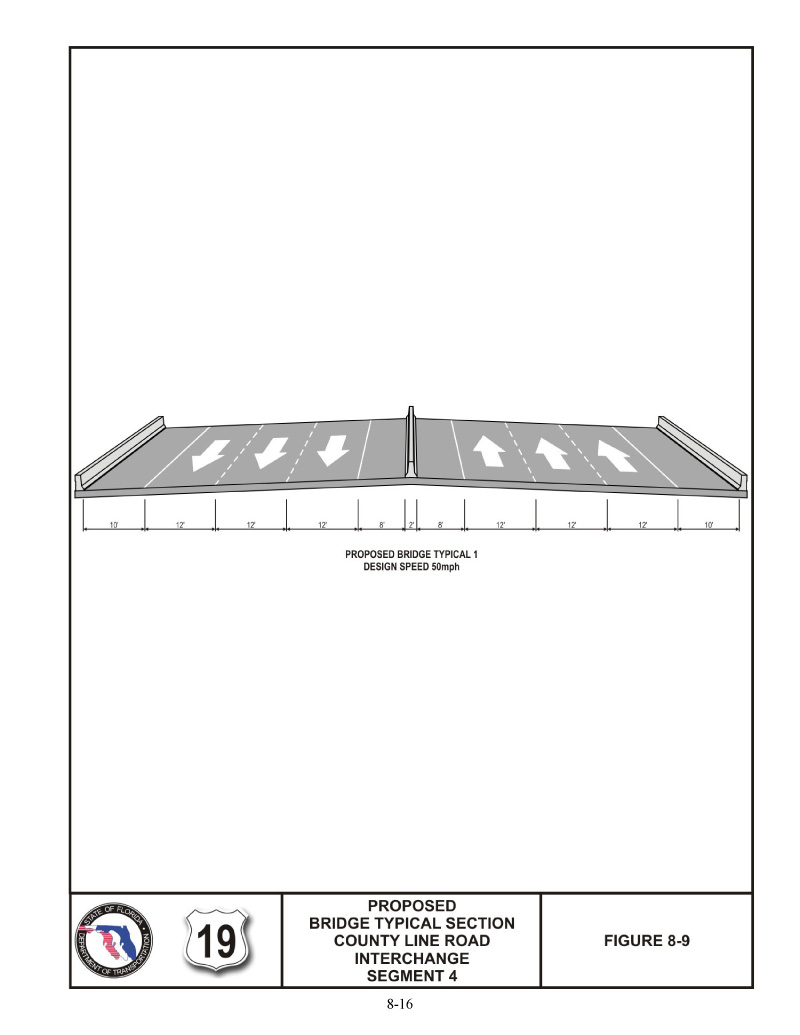

- PROPOSED BRIDGE TYPICAL SECTION COUNTY LINE ROAD INTERCHANGE SEGMENT 4
-

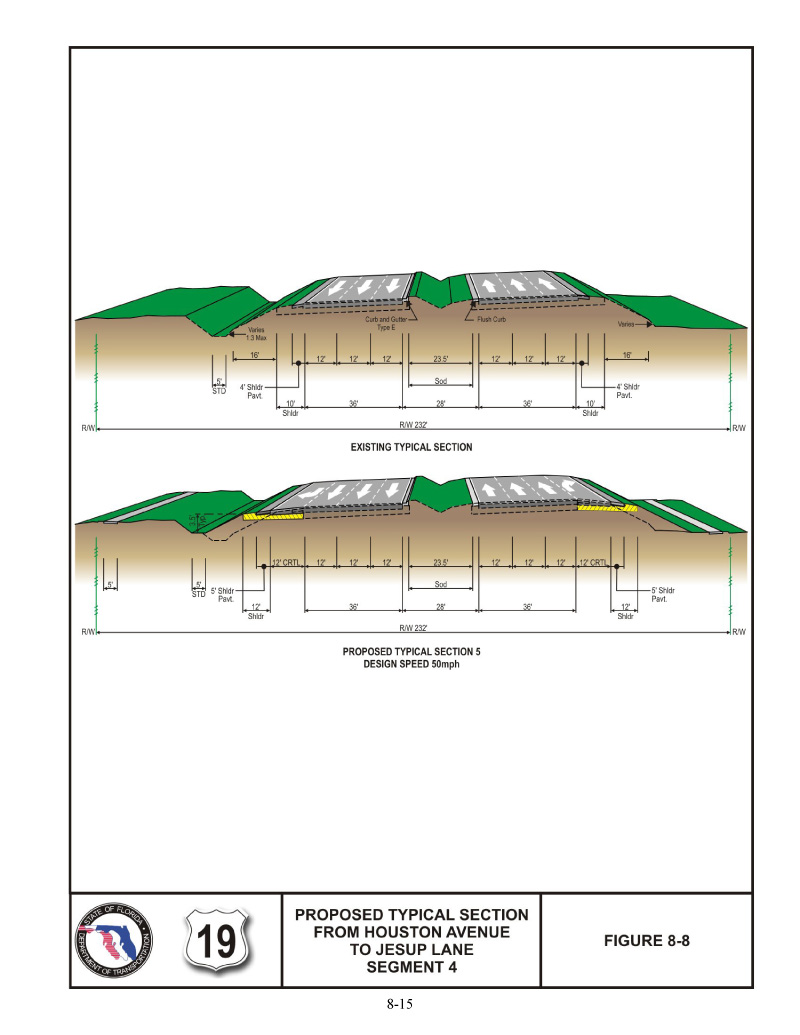

- PROPOSED TYPICAL SECTION FROM HOUSTON AVENUE TO JESUP LANE SEGMENT 4
-

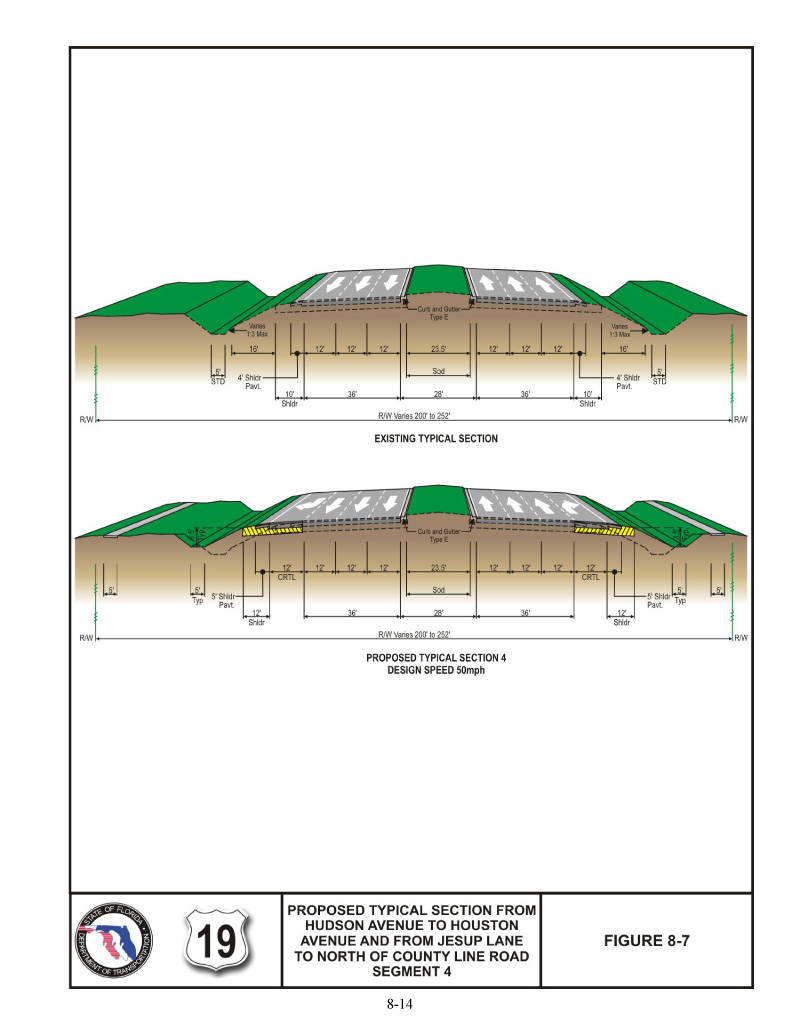

- PROPOSED TYPICAL SECTION FROM HUDSON AVENUE TO HOUSTON AVENUE AND FROM JESUP LANE TO NORTH OF COUNTY LINE ROAD SEGMENT 4
-

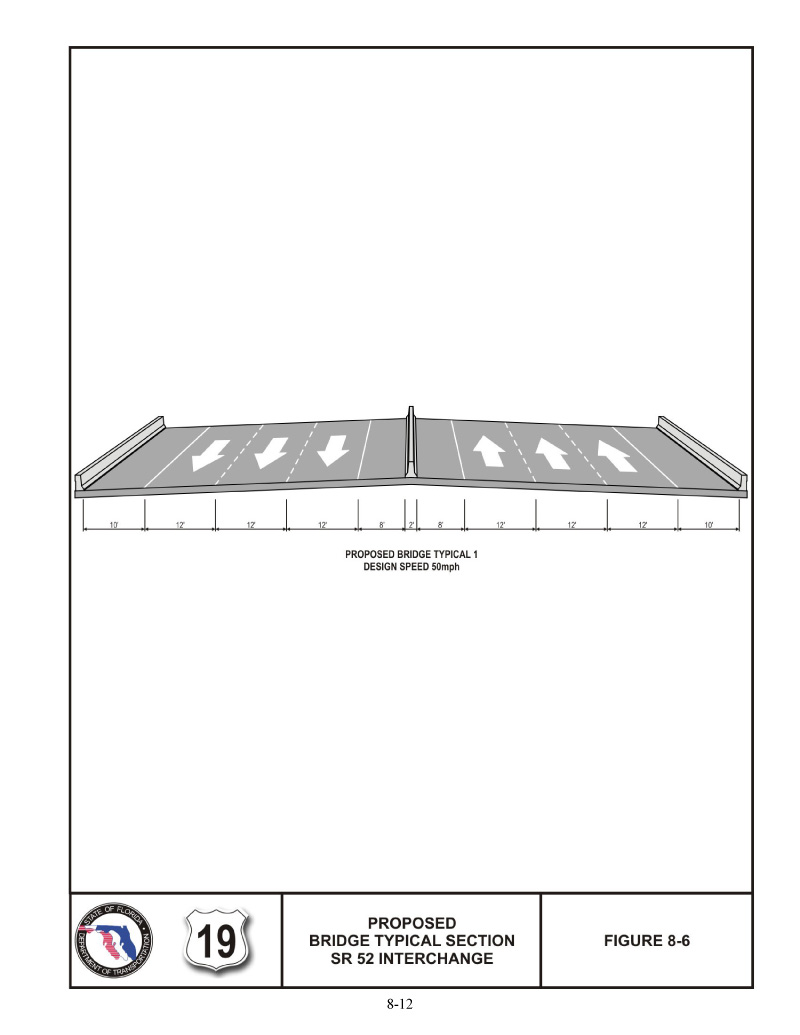

- PROPOSED BRIDGE TYPICAL SECTIONSR 52 INTERCHANGE
-

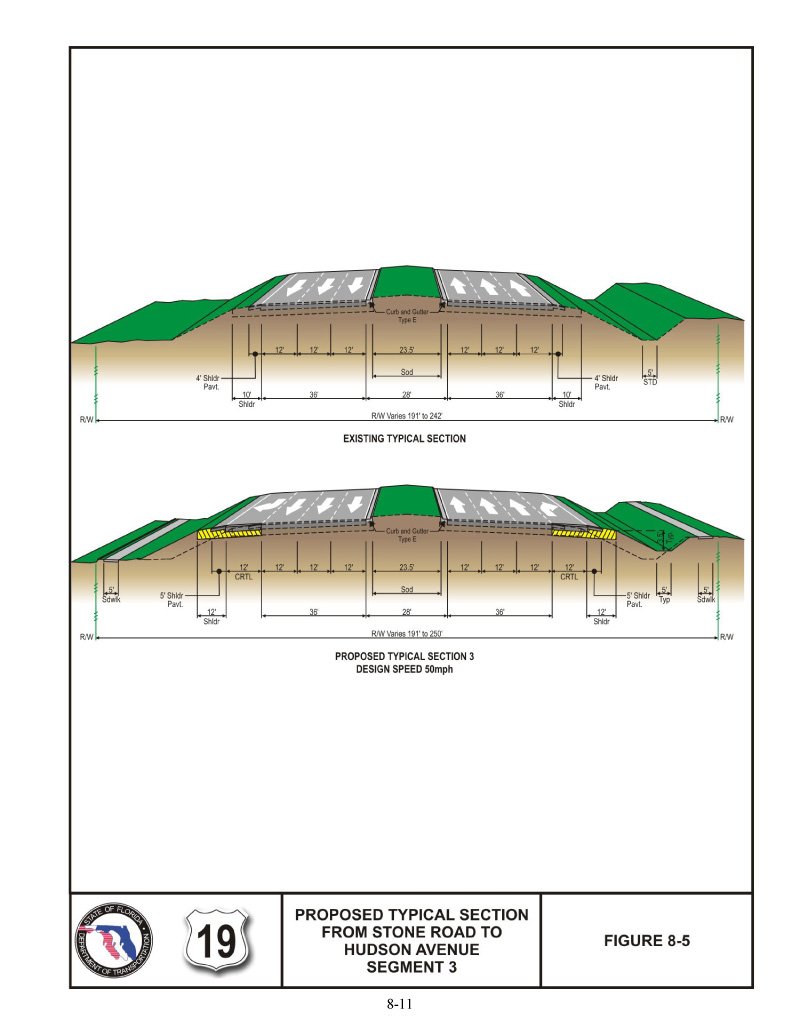

- PROPOSED TYPICAL SECTION FROM STONE ROAD TO HUDSON AVENUE SEGMENT 3
-
- PROPOSED BRIDGE TYPICAL SECTION RIDGE ROAD INTERCHANGE SEGMENT 2
-

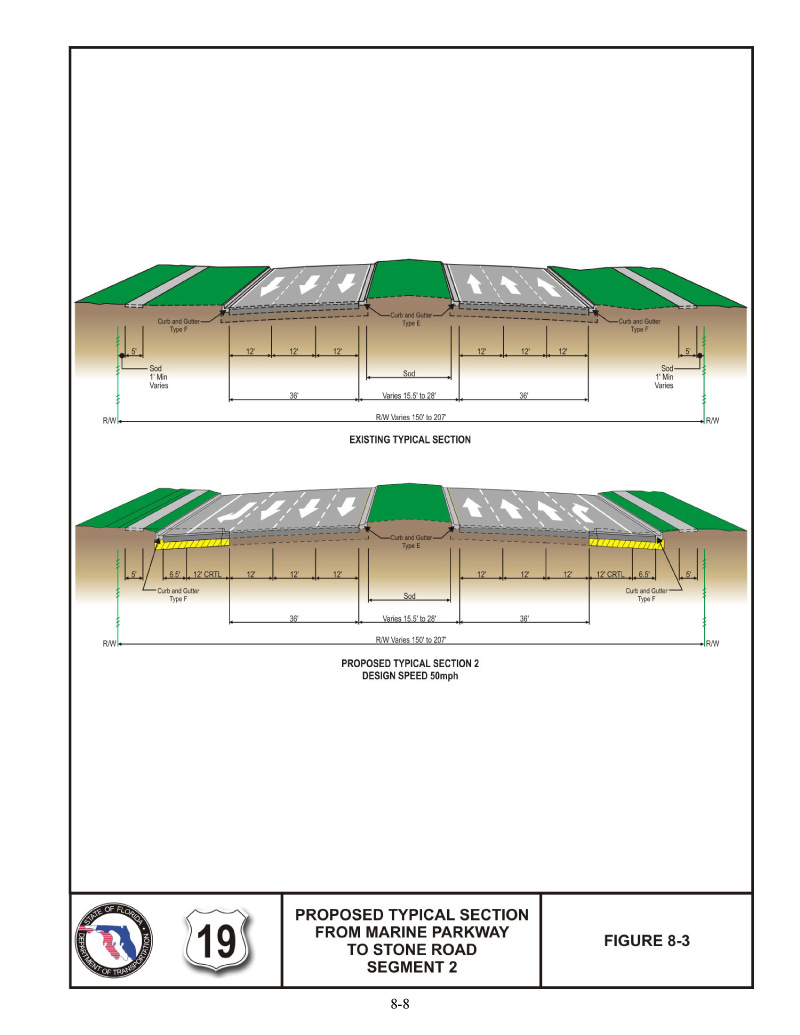

- PROPOSED TYPICAL SECTION FROM MARINE PARKWAY TO STONE ROAD SEGMENT 2
-

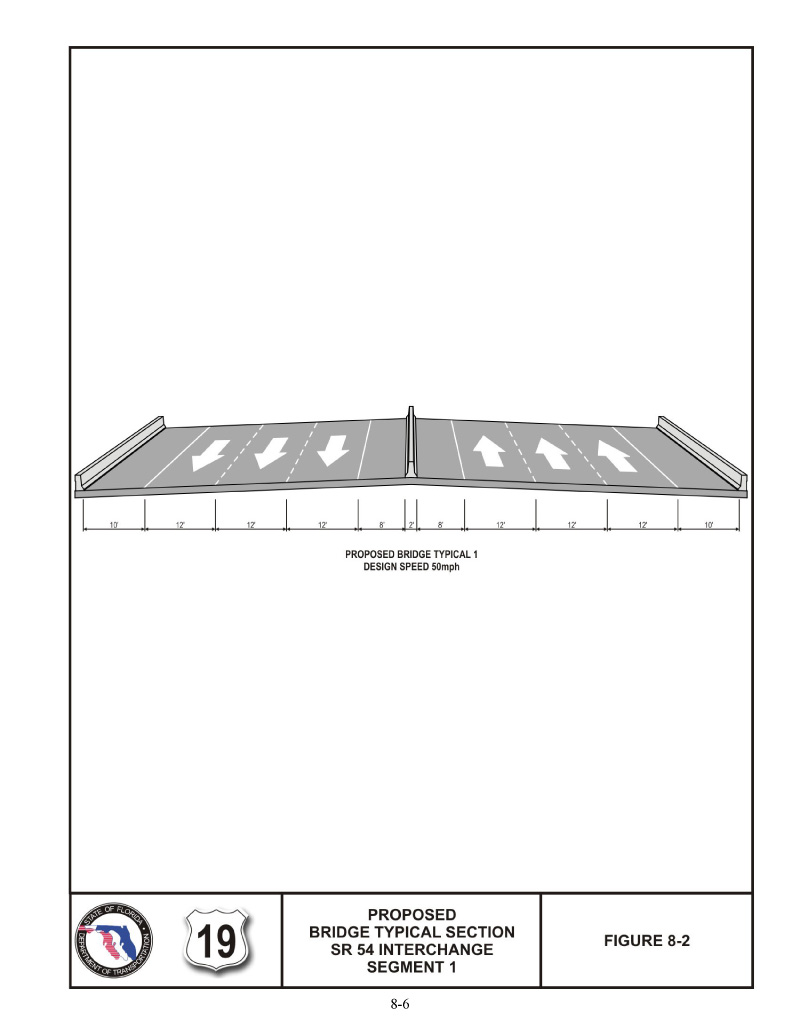

- PROPOSED BRIDGE TYPICAL SECTION SR 54 INTERCHANGE SEGMENT 1
-

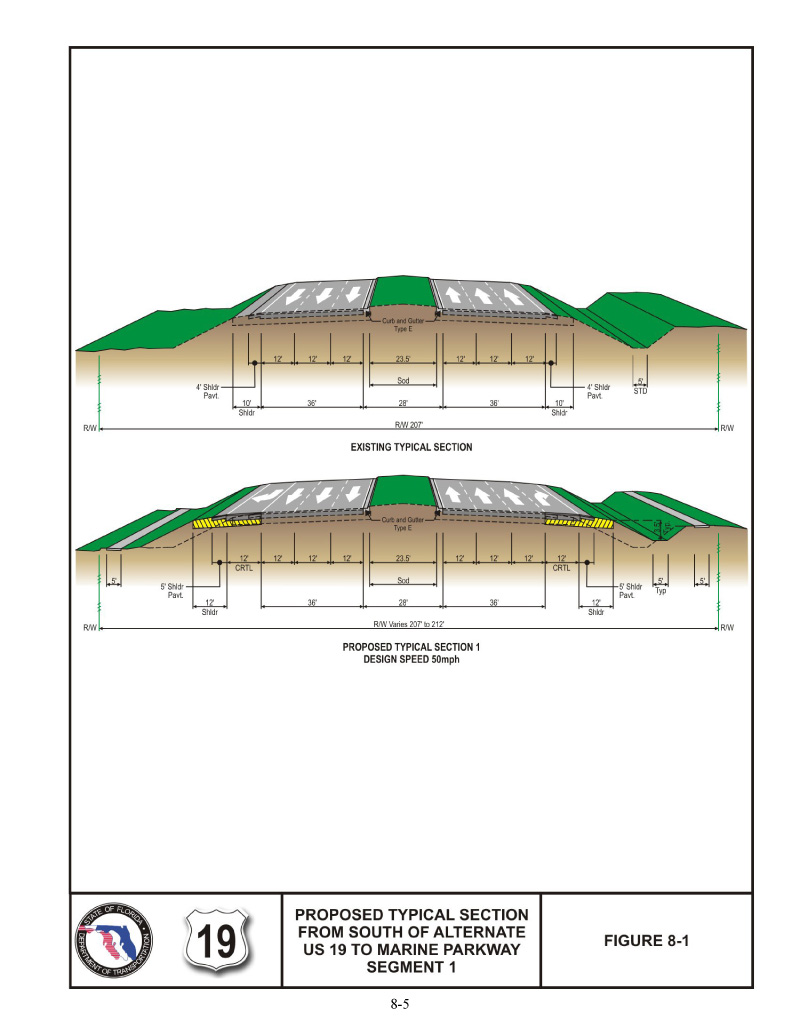

- PROPOSED TYPICAL SECTION FROM SOUTH OF ALTERNATE US 19 TO MARINE PARKWAY SEGMENT 1
